Free Standing Rig — 3 Cell

The Commercial Standard. Six Athletes. Both Sides.

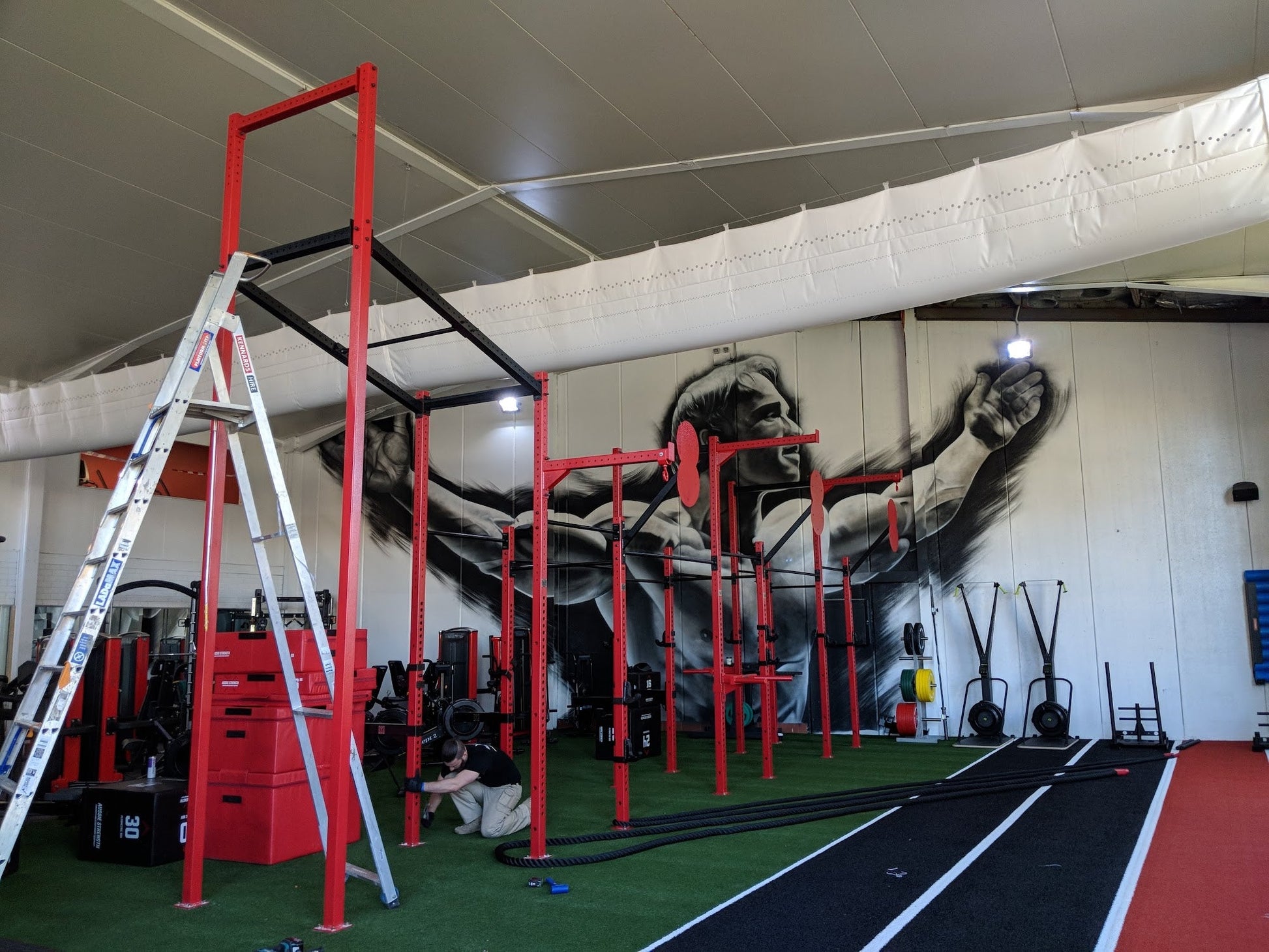

The Phoenix Free Standing 3 Cell Rig is the most common configuration for serious commercial facilities, CrossFit boxes, strength and conditioning centres, PT studios running group sessions, and defence facilities. Three cells across both sides means six athletes training simultaneously from one self-supporting frame.

Three 1800mm cells gives you 5400mm of total rig width. Each cell is wide enough for a 7ft barbell with athletes training on both sides. The free standing configuration means you're not limited by where your structural walls are, the rig goes where the floor plan needs it.

Standard depth is 1080mm. Wide boy is 1800mm. Both are available and both support full training on either side. The bolt-together construction means this rig can be extended to 4+ cells later without replacing what you've already built.

System Specs

• Uprights: 75 x 75mm SHS, 4mm wall (Premium) or 3mm wall (Standard)
• Hole diameter: 25mm | Hole spacing: 25mm centres
• Heights: 2500mm / 2750mm / 3000mm / 3500mm
• Standard depth: 1080mm | Wide boy depth: 1800mm
• Compatible with all Phoenix and Valkyrie attachments (25mm/25mm spec)
• Bolt-together, modular system, add cells as your gym grows
• Finish: Powder coat black (custom RAL available)

What's Included

Quoted as a complete configured system. Includes uprights, base plates, crossbeams, chin bars, J-hooks, and safety spotter arms. Accessories and installation quoted separately. Call Andy to get your floor plan specced and a line-item quote in 24 hours.

Phone: 0422 046 895
