Free Standing Rig — 4+ Cell

Large Format. Both Sides. Built to Your Floor Plan.

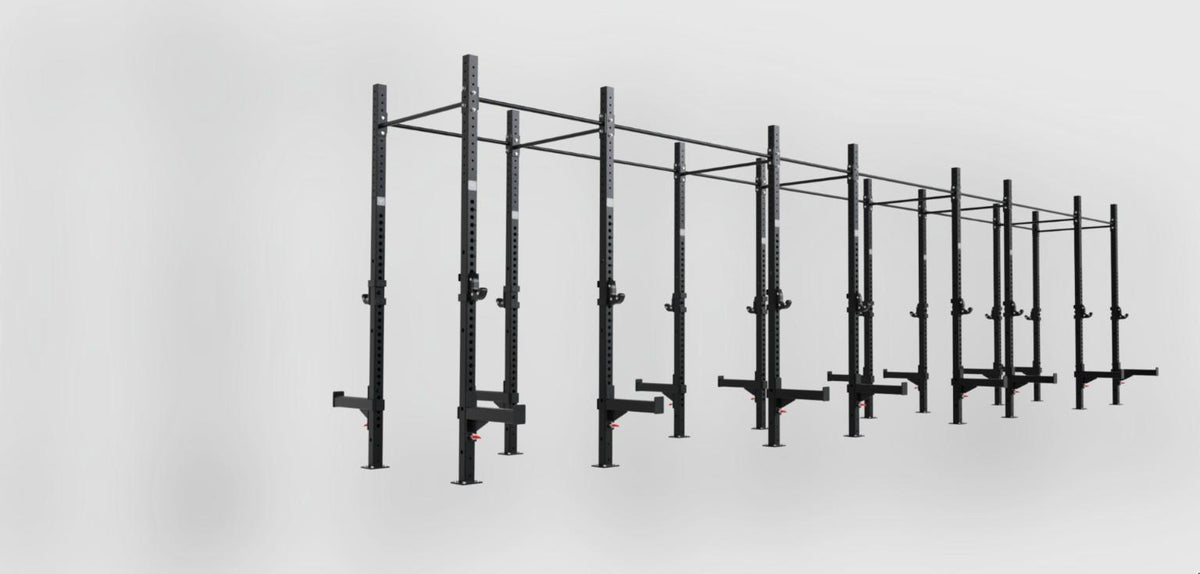

The Phoenix Free Standing 4+ Cell Rig is for facilities that need real training capacity — eight or more athletes simultaneously, across two sides of a self-supporting modular frame. This is the configuration that fills the floor of a CrossFit box, a defence facility, a large PT studio, or a commercial gym doing group strength sessions.

Four cells gives you 7200mm of rig width. Five cells is 9000mm. Six, eight, ten — the bolt-together system extends as far as your floor plan allows. Both sides are fully usable on every configuration. The rig can run in a straight line, an L-shape, or a U-shape depending on your space.

At this scale, Phoenix works directly with you on the floor plan. Andy specs the configuration on a call, provides a line-item quote, and works with you on lead times through our direct manufacturing relationships.

System Specs

• Uprights: 75 × 75mm SHS, 4mm wall (Premium) or 3mm wall (Standard)
• Hole diameter: 25mm | Hole spacing: 25mm centres
• Heights: 2500mm / 2750mm / 3000mm / 3500mm
• Standard depth: 1080mm | Wide boy depth: 1800mm
• Configurations: Straight / L-shape / U-shape — designed to your floor plan
• Compatible with all Phoenix and Valkyrie attachments (25mm/25mm spec)
• Bolt-together — fully modular, expandable post-install
• Finish: Powder coat black (custom RAL available)

How It Works

Call Andy with your floor dimensions and intended usage. He'll spec the cell count, depth, height, and accessory configuration on the call and get you a quote within 24 hours. No obligation. No hard sell.

Phone: 0422 046 895
